Name: precision mechanical components/test device/test equipment

Material: SKH51, SUJ2, SKD11, HSS…etc.
Hardness: 40-64HRC
Tolerance: +/-0.01mm to +/-0.005
  • MWMECH

  • MWMP-192011

  • yes

Availability:
Quantity:


Precision mechanical components/mechanism test device&equipment application


  • These pictures and drawings are our customized products. It shows our supply ability. Due to the Intellectual Property, it's only for reference.


  • Assemble line work fixture& tooling devices and components are the key back up for the factory automation processing line. We can supply them according to your drawings.


  • Except for the non-standard parts, we can supply types of mechanical force research devices and equipments according to your design. This kinds of test tooling device is used to make scientific researches and experiments for some researching institutes and departments. Usually there’re some other non-mechanical elements composed into this system, we supply the mechanical components section only.



Precision mechanical components/non standard parts/mechanism test device & equipment customization


  • Various of materials such as acrylics, peeks, metals with different surface treatments are adopted to satisfy with your requirements and keep efficient running of your production line. Since the work fixture tooling and parts are closely connected with the practical production scenes and conditions, we produce customer orientated and non-standard OEM products.

  • You need to provide clear drawings and requirements so as to for our engineers understand thoroughly. Our regular service

    scope as following but not limited, up to your drawings:


Assemble Line Work Fixture and Tooling,

Height Detection Mechanism Tooling,

Inspection Assemble Line Work Fixture and Tooling,

Cutting Assemble Line Work Fixture and Tooling,


Non-Standard Mechanical Parts,

Assemble Line Punch,

Assemble Line Head Punch,

Assemble Line Connecting -Adapter Parts,

Assemble Line Mounting Plate Components,

Assemble Line Metal Gripper,

Assemble Line Guide Sleeves,

Assemble Line Orientation Inserts,

Assemble Line Flange Connector parts,

Assemble Line Device,

Orientation Parts for Assemble Line,

Measurement Parts for Assemble Line,

Non-Standard Inspection Parts,

Non- Standard Metal Cutters for Assemble Line…


Precision mechanical components/mechanism test equipment features


  • Good consistency, stable quality, precision tolerances +/-0.01mm to +/-0.005mm.

  • Almost zero repair rate and zero defective products, all replacement or repair for free due to our fault within 1 year warranty period.

  • Quality control assurance.

  • Fast after-sale respond.


Precision mechanical components packaging


Inner: bubble bag, PE bag or plastic seal with anticorrosive oil plus outer carton box, or other safe package.


Precision mechanical components surface treatment


You may choose surface treatmen according to your needs. Below are some usual methods we use.

surface treatment-MWMECHPARTS



Our cases of precision mechanical components/test device & equipment

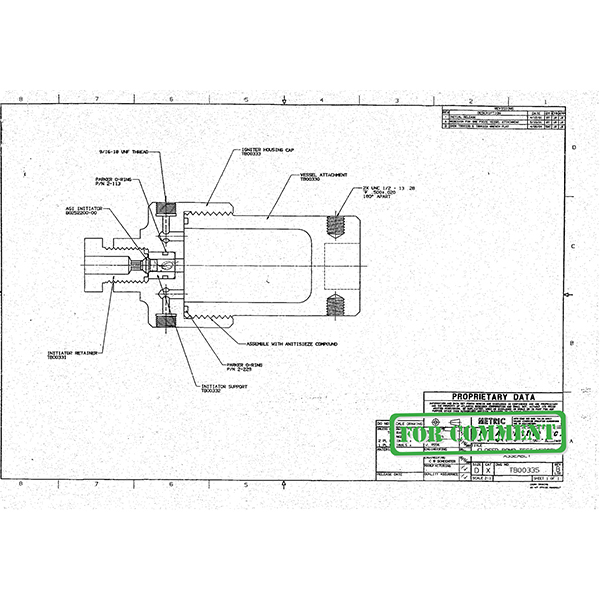

1) Customized impact force test device


It's a systematic device including the sensor, igniter…several supporting parts. We supply the part of mechanical components section. This kinds of tooling is for scientific research and experiment. We can supply types of mechanical force research devices according to your design.


customized impact force test tooling-MWMECHPARTS customized explosive force test tooling-MWMECHPARTS impact force test device-MWMECHPARTS

impact force test device and tooling-MWMECHPARTS impact force test tooling supplier-MWMECHPARTS


2) Various application of non standard parts

customized precision die for moulding product-MWMECHPARTS FA work fixture and tooling supplier-MWMECHPARTS customized header punch -MWMECHPARTS



FAQ


Q: What service can you do?

A: OEM/ODM. Free samples available after price confirmed, but you need to share the sample freight. We produce the parts per customers'drawing or sample. Concerning the protection of customers'intellectual property, we don't sell our customers'same product to the third party.


Q: What data should the customer provide for a precise quotation?

A: The drawings or samples, quantity, tolerance, standard, material, surface finish, other special requirements, etc.


Q: What're your delivery methods?

A: DHL, EMS, UPS, land transport or sea freight available.


Q: How do you assure the quality control?

A: Full inspection with test report and material composition certificate for each order and 1-year after-sale service for free repair or replacement for deficit products. Almost zero repair rate and defective products all replacement or repair for free.


Q: How long is your lead time?

A: 10-30days up to the quantity.


Q: what surface treatments can you deal with?

A: Titanium nitride (TiN), TiCN, titanium plating, blackening, carburize, zinc plating, zinc coating,  galvanization, chrome plate, etc.


Q: what's your payment term?

A: T/T, L/C, western Union, PayPal, etc.
