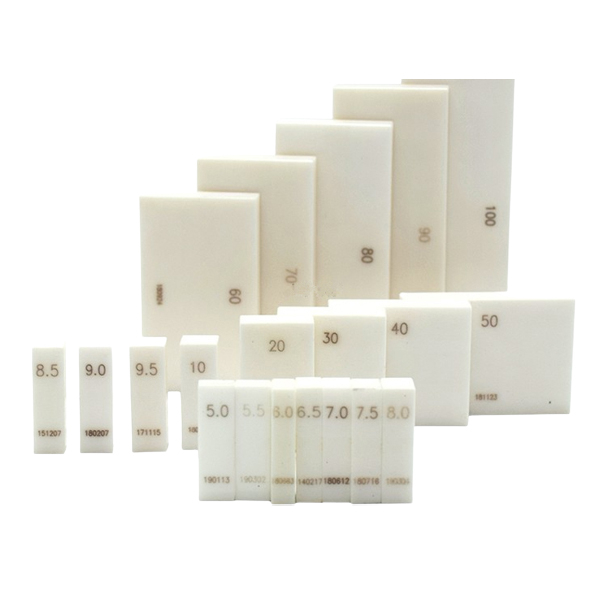

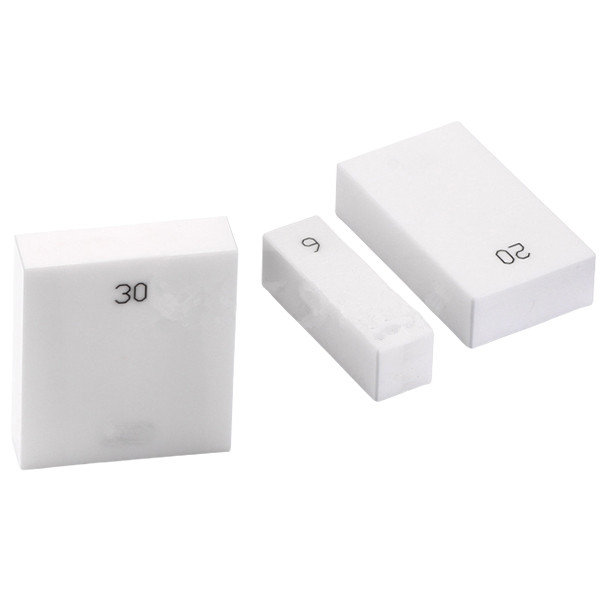

Gauge blocks (also known as gage blocks, Johansson gauges, slip gauges, or Jo blocks) are a system for producing precision lengths. It is fundamental standards for linear measurement. For adjusting, checking, or inspecting measuring instruments and tools, and precision work pieces. Gauge blocks come in sets of blocks with a range of standard lengths. In use, the blocks are stacked to make up a desired length or height.
Measuring length;
Measuring work pieces size, or used for calibration and adjustment of measuring instruments and tools.
Material | Ceramic |
Number of blocks | 32pcs/set,38pcs/set,47pcs/set,83pcs/set,87pcs/set,103pcs/set, 112pcs/set |
Increments | 0.01mm, 0.1mm, 1mm, 0.5mm, 10mm, etc. |
Size | 1mm-100mm |
Standard | DIN861-1980 20℃ accuracy(um) |
Measuring | Metric and Inch |
Grade | Grade 0 for calibration |
| NO. | Total Blocks(pcs) | Precision Grade | Dimension (mm) | Dimensional increment | Numbers of blocks |
| MW020101 | 32 | 0, 1 | 1.005 | / | 1 |
| MW020102 | 1.01-1.09 | 0.01 | 9 | ||
| MW020103 | 1.1-1.9 | 0.1 | 9 | ||
| MW020104 | 1.0-9.0 | 1 | 9 | ||
| MW020105 | 10-30 | 10 | 3 | ||
| MW020106 | 50 | / | 1 | ||
| MW020201 | 38 | 0, 1 | 1.005 | / | 1 |
| MW020202 | 1.01-1.09 | 0.01 | 9 | ||
| MW020203 | 1.1-1.9 | 0.1 | 9 | ||
| MW020204 | 1.0-9.0 | 1 | 9 | ||
| MW020205 | 10-100 | 10 | 10 | ||
| MW020301 | 47 | 0, 1 | 1.005 | / | 1 |
| MW020302 | 1.01-1.20 | 0.01 | 20 | ||
| MW020303 | 1.3-1.9 | 0.1 | 7 | ||
| MW020304 | 1.0-9.0 | 1 | 9 | ||
| MW020305 | 10-100 | 10 | 10 | ||
| MW020401 | 83 | 0, 1 | 1.005 | / | 1 |
| MW020402 | 1.01-1.49 | 0.01 | 49 | ||
| MW020403 | 1.6-1.9 | 0.1 | 4 | ||
| MW020404 | 0.5-9.5 | 0.5 | 19 | ||
| MW020405 | 10-100 | 10 | 10 | ||
| MW020501 | 87 | 0, 1 | 1.001-1.009 | 0.001 | 9 |
| MW020502 | 1.01-1.49 | 0.01 | 49 | ||
| MW020503 | 0.5-9.5 | 0.5 | 19 | ||
| MW020504 | 10-100 | 10 | 10 | ||
| MW020601 | 103 | 0, 1 | 1.005 | / | 1 |
| MW020602 | 1.01-1.49 | 0.01 | 49 | ||
| MW020603 | 0.5-24.5 | 0.5 | 49 | ||
| MW020604 | 25-100 | 25 | 4 | ||
| MW020701 | 112 | 0, 1 | 1.005 | / | 1 |
| MW020702 | 1.001-1.009 | 0.001 | 9 | ||
| MW020703 | 1.01-1.49 | 0.01 | 49 | ||
| MW020704 | 0.5-24.5 | 0.5 | 49 | ||
| MW020705 | 25-100 | 25 | 4 |
You need to provide clear drawings and requirements so as to for our engineers understand thoroughly.
Good consistency, stable quality, grade0, grade1.
Ceramic gage block with High wear resistance, service life is 5-10 times of steel.
Strong corrosion resistance, no special protection in using and less maintenance.
Surface with the ultra-precision processing to ensure stability. The influence of temperature change is extremely tiny to it.
Easy to use. It can be used separately, also can be combined into different sizes for different testing.
Full final inspection; deficit products 100% repair or replacement.
Package: plastic box, wooden box choice
Per set packed in plastic case with classified display
Per set packed in wooden case with classified display
Customized package or requirements available
