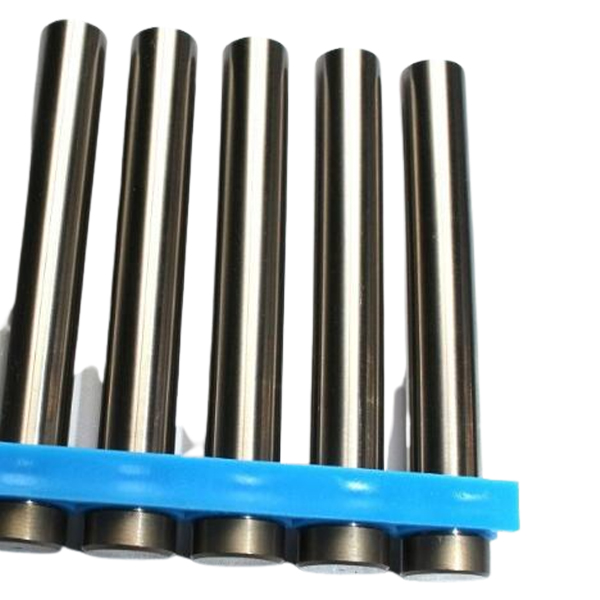

Die Punch-also called punch pin or ejector punch, is installed on the stamping die to make continuous blanking operation and, as a result , make the separation or plastic deformation of the processed materials so as to obtain the required
finished or semi-finished products.
Usual materials: The punch is generally made of high speed steel, spring steel and tungsten steel.
High speed steel punch and spring steel punch are the most commonly used. The high speed steels are Cr12MoV, SKD11, SKD61, SKH51, ASP23, etc. The spring steel materials are SUJ2, GCr15, etc. Tungsten steel material is generally used in high-level blanking and shearing die. Because of its high cost, and the need of complex machining technology, the use of tungsten steel punch is a little limited to some degree, it’s not widely used.

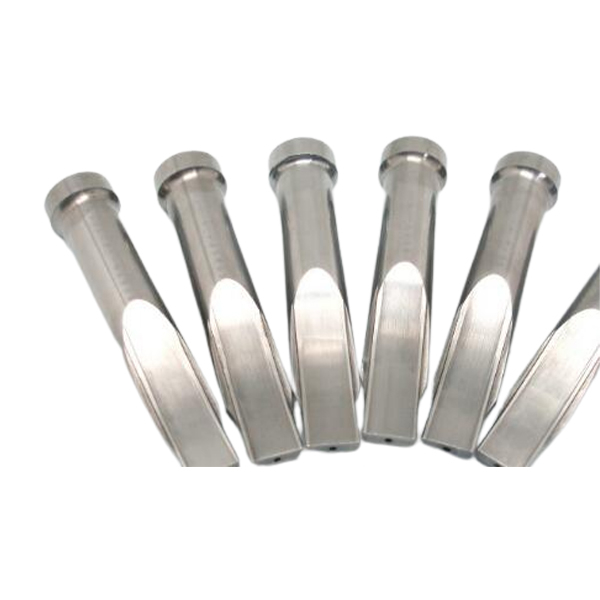

Usage: According to the use, the punches can be divided into pilot punch, burring punch, hexagonal punch, elliptical punch, sectorial punch, special shape punch…etc.
Punch surface treatment: usually we choose titanium plating or chrome plating.
The advantages of titanium plating treatment: after plating, the dimensional precision is easy to control due to the thin coating thickness 2 ~ 3μm. It’s feature is that the deformation is small, the surface friction coefficient is reduced, the surface hardness is increased, the wear resistance is enhanced, thus delaying the service life of the mould and die. The types of titanium layer are TiN, TiCN, TiAIN, TiCRN…etc.
The advantages of chromium plating: wear resistance increases, but the disadvantage is that the dimensional accuracy and consistency after plating is poor. In order to ensure the use requirements, further processing is needed and the cost increases.
Applied for punching hole in metal stamping machine bed or high speed stamping die for quantity processing.
The common use in the plastic mold to separate the products from the mold.
Material: SKH51, SKD61
Hardness: 48-52HRC
Tolerance: +/-0.01mm - +/-0.005mm
Application: the stamping die, the plastic moulds, the die casting moulds
You need to provide clear drawings and requirements so as to for our engineers understand thoroughly. We can also supply precision mechanical parts as below:
Non-Standard Mechanical Parts,
Assemble Line Punch,
Assemble Line Head Punch,
Assemble Line Connecting -Adapter Parts,
Assemble Line Mounting Plate Components,
Assemble Line Metal Gripper,
Assemble Line Guide Sleeves,
Assemble Line Orientation Inserts,
Assemble Line Flange Connector parts,
Assemble Line Device，
Orientation Parts for Assemble Line,
Measurement Parts for Assemble Line,
Inspection Parts,
Non- Standard Metal Dividing Cutters Assemble Line Tooling…
Good consistency, stable quality, precision tolerances +/-0.01mm to +/-0.005mm.
Almost zero repair rate, and defective products all replacement or repair for free due to our fault within 1 year warranty period.
A-type punch, hexagonal punch, elliptical punch, fan punch, special-shaped punch, material customized etc.
Surface treatment: Titanium nitride(TiN), TiCN, titanium plating, etc
ISO quality assurance system.
Fast after-sale respond.
Inner: bubble bag, PE bag or plastic seal with anticorrosive oil plus outer carton box, or other safe package.
 |  |  |

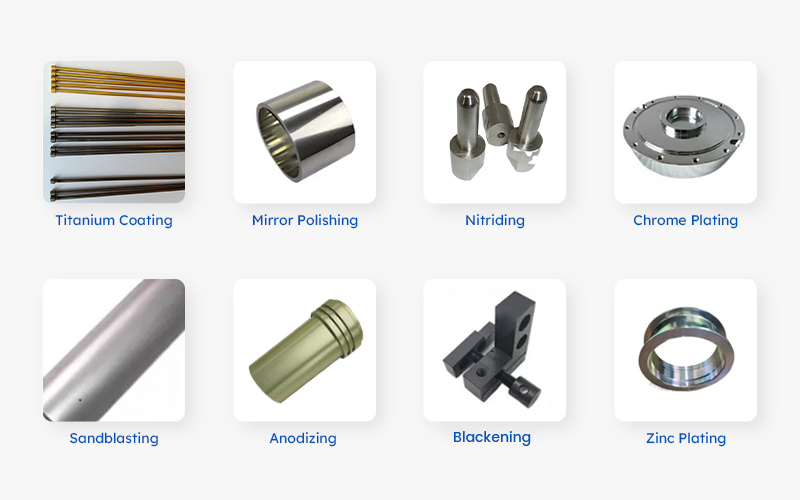

The main surface treatment methods of die accessories are: electroplating, spraying, polishing, anodizing, blackening, etc.
