In the case of accurately repeating positioning, as a positioning reference, they can improve the clamping accuracy and reduce the vibration during the processing.
Classification: Rotary centers (live centers); Integral centers (dead centers)
Light duty CNC rotary precision live centers are mainly used for processing shaft sleeve parts on small lathes. The center hole positioning make the machined parts have high dimensional accuracy. Light duty rotary centers possess high precision, high rotary speed, they are essential accessories for small precision lathe high-speed cutting work.
Medium rotary CNC Morse taper live centers are mainly used for processing shaft sleeve parts on general lathes. With the help of center hole positioning, the machined parts have high dimensional accuracy.
Heavy-duty rotary CNC Morse taper live centers are mainly used for processing shaft sleeve parts on larger lathes. Due to the large load, they are suitable for high- speed-strong-force cutting.
The bull-nose type rotary live centers are mainly used for machining bushes and tubes parts on the lathe. They make the machined parts have high dimensional accuracy.
The CNC Morse taper dead centers are mainly used for lathes, grinding and milling machines to process shafts and bushes parts.
The CNC Morse taper carbide tips have higher hardness, thus possess better cutting performance.

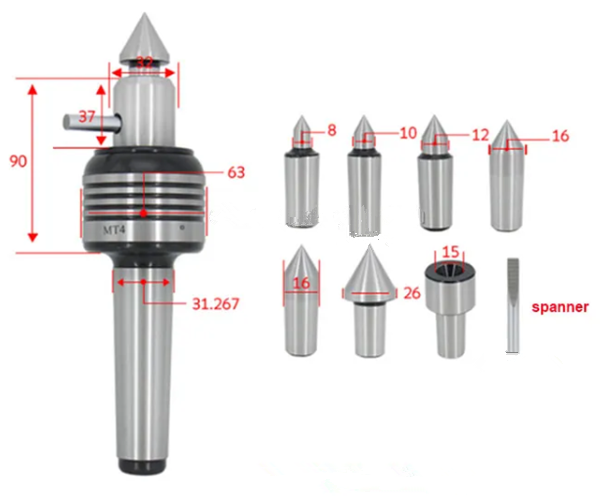

Morse Taper Models have MS0/MS1/MS2/MS3/MS4/MS5/MS6 seven models, each nominal diameter in sequence is: 9.045, 12.065, 17.78, 23.825, 31.267, 44.399, 63.348.
MT3-7pcs/set; MT4-7pcs/set; MT5-7pcs/set
Accuracy: 0.01mm (under zero load)
Speeds: Min.2000rpm
Body material: 40Cr
Center material: carbon tool steel T10, >HRC55
Bearings: imported brand, SKF…
Sample: available
Delivery: 7-25days within 50sets
OEM: support
Warranty: 6 months
Package: packed in wooden, plastic boxes or other

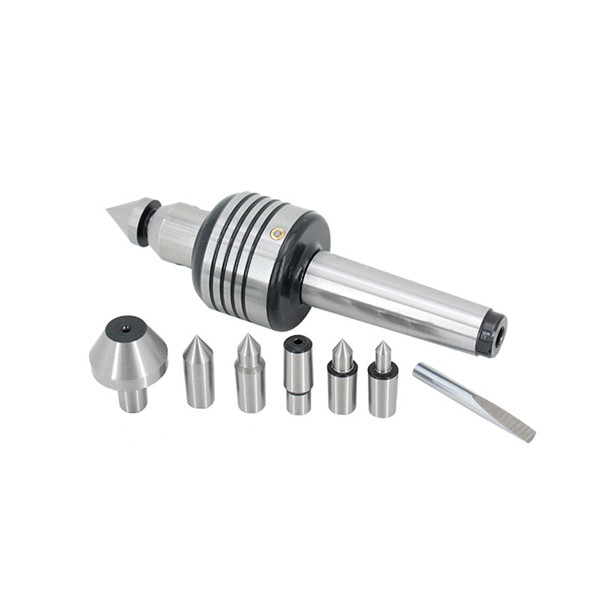

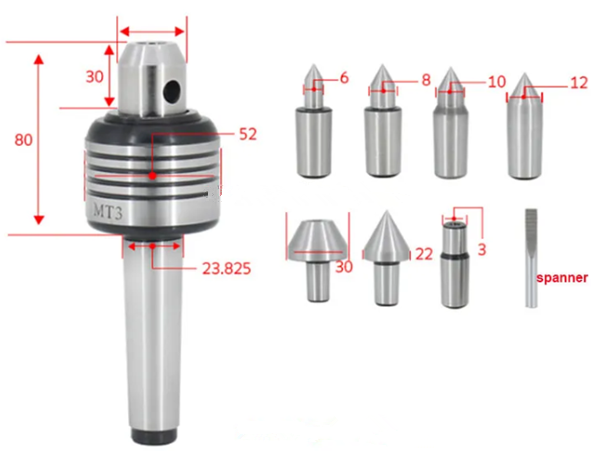

MT3-7pcs/set
 |  |

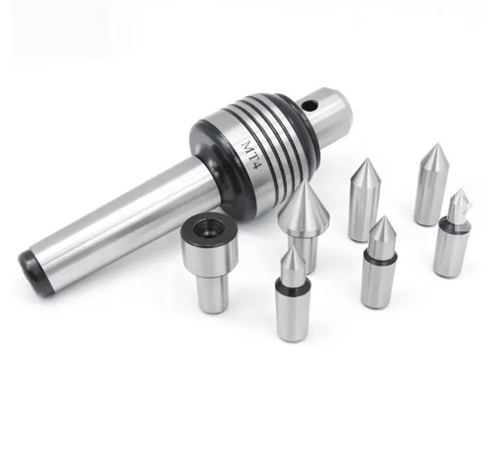

MT4-7pcs/set
 |  |

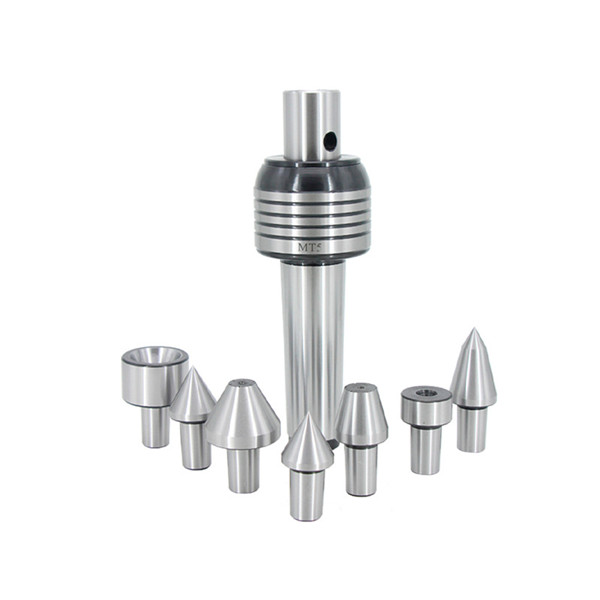

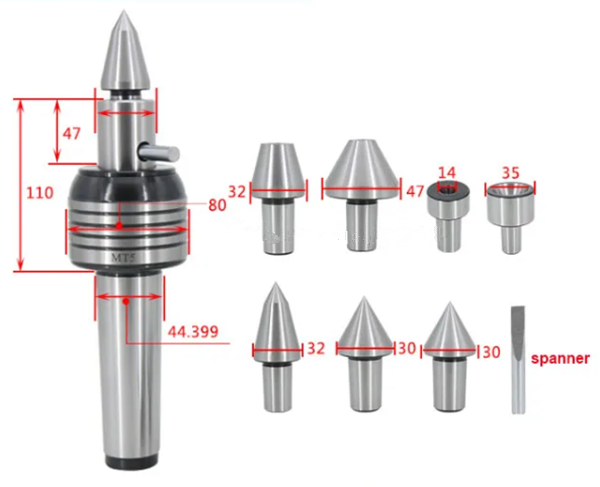

MT5-7pcs/set
 |  |
 |  |
 |  |

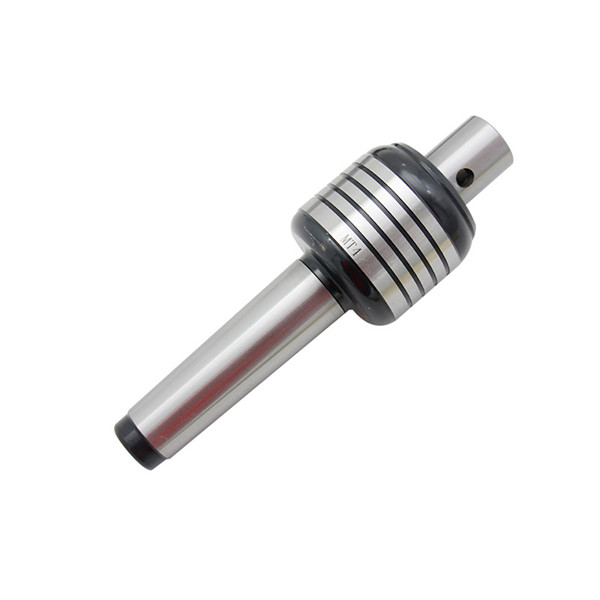

Inter-changeable points live centers set is very cost effective.

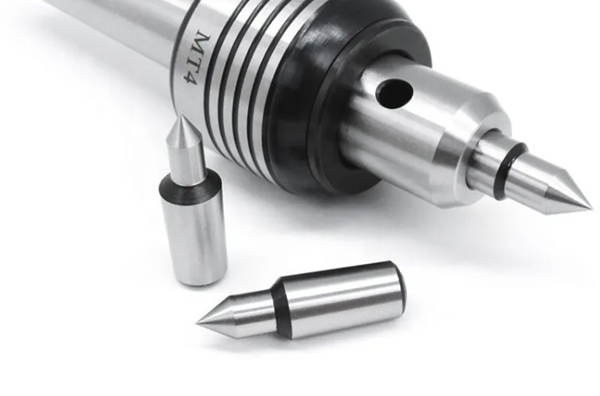

Different center tips can suit different processing environments.
Dust-proof seal gland at the front.
Three-bearing design improves precision and shortens the lag time

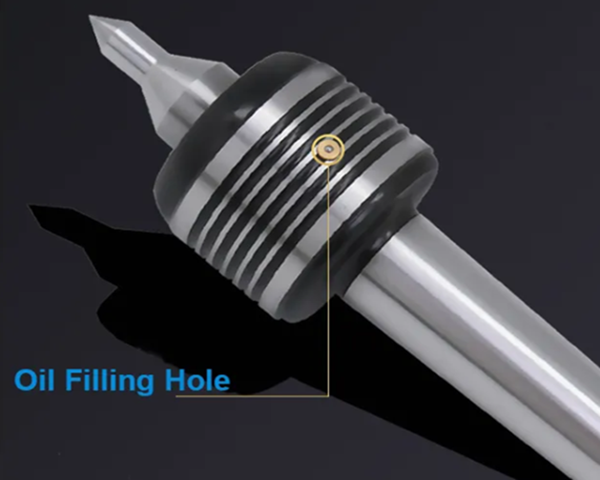

Quick oil filling, prolong service life
In the state of high-speed internal rotation, the lubricating oil is easy to evaporate and affect the rotation. Regular oil injection can reduce the bearing load force and effectively protect the life of the bearing.
 |  |
|

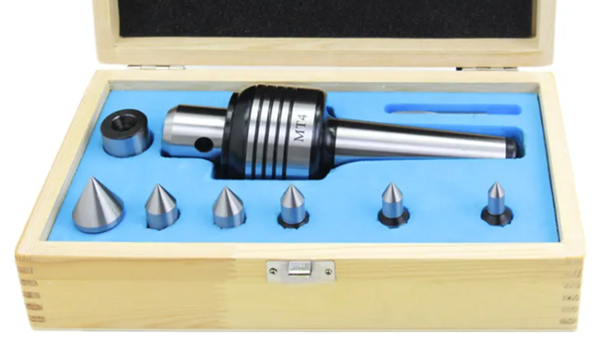

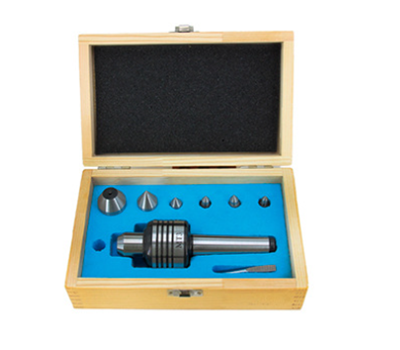

packed in wooden, plastic boxes or other
|  |
FAQ
Q: What service can you do?
A: OEM/ODM. Free samples available after price confirmed, but you need to share the sample freight. We produce the parts per customers'drawing or sample. Concerning the protection of customers'intellectual property, we don't sell our customers'same product to the third party.
Q: What data should the customer provide for a precise quotation?
A: The drawings or samples, quantity, tolerance, standard, material, surface finish, other special requirements, etc.
Q: What're your delivery methods?
A: DHL, EMS, UPS, land transport or sea freight available.
Q: How do you assure the quality control?
A: Full inspection with test report and material composition certificate for each order and 1-year after-sale service for free repair or replacement for deficit products. Almost zero repair rate and defective products all replacement or repair for free.
Q: How long is your lead time?
A: 10-30days up to the quantity.
Q: what surface treatments can you deal with?
A: Titanium nitride (TiN), TiCN, titanium plating, blackening, carburize, zinc plating, zinc coating, galvanization, chrome plate, etc.
Q: what's your payment term?
A: T/T, L/C, western Union, PayPal, etc.
