In the cse of accurately repeating positioning, as a positioning reference, they can improve the clamping accuracy and reduce the vibration during the processing.
Classification: Rotary centers (live centers); Integral centers (dead centers)
Light duty CNC rotary precision live centers are mainly used for processing shaft sleeve parts on small lathes. The center hole positioning make the machined parts have high dimensional accuracy. Light duty rotary centers possess high precision, high rotary speed, they are essential accessories for small precision lathe high-speed cutting work.

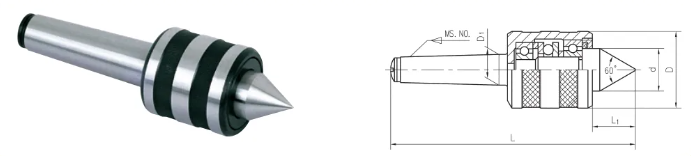

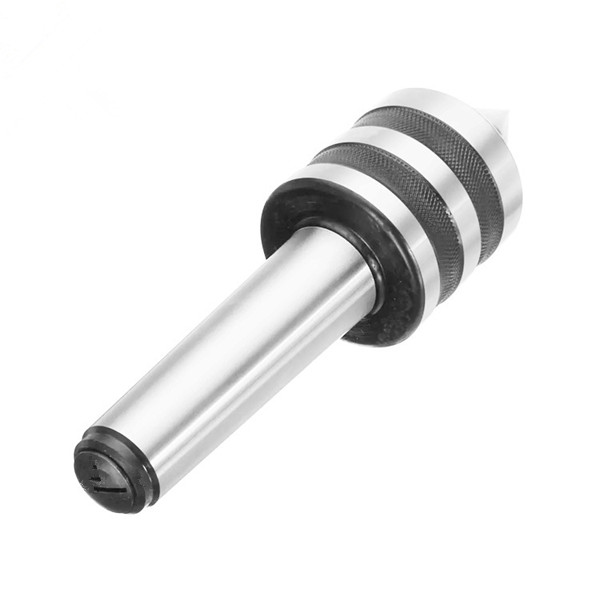

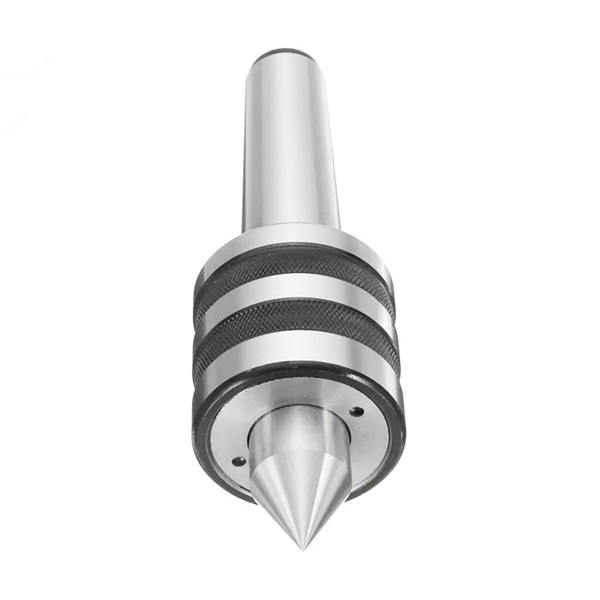

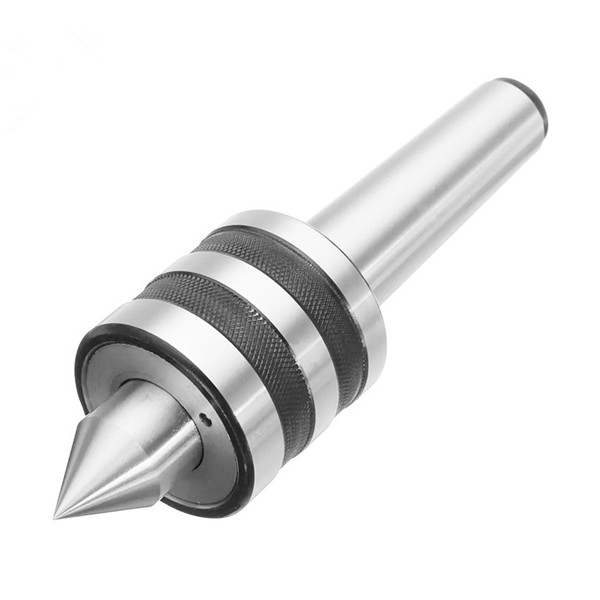

Medium rotary CNC Morse taper live centers are mainly used for processing shaft sleeve parts on general lathes. With the help of center hole positioning, the machined parts have high dimensional accuracy.
Heavy-duty rotary CNC Morse taper live centers are mainly used for processing shaft sleeve parts on larger lathes. Due to the large load, they are suitable for high- speed-strong-force cutting.
The bull-nose type rotary centers are mainly used for machining bushes and tubes parts on the lathe. They make the machined parts have high dimensional accuracy.
The CNC Morse taper dead centers are mainly used for lathes, grinding and milling machines to process shafts and bushes parts.
The CNC Morse taper carbide tips have higher hardness, thus possess better cutting performance.

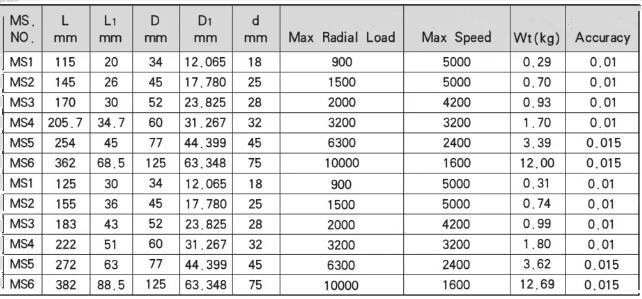

Morse Taper Models have MS0/MS1/MS2/MS3/MS4/MS5/MS6 seven models, each nominal diameter in sequence is: 9.045, 12.065, 17.78, 23.825, 31.267, 44.399, 63.348.
Accuracy: 0.01mm (under zero load)
Speeds: 3000-5000rpm
Body material: steel 45; HRC45-48
Center material: carbon tool steel T10, HRC60±2
Carbide tip material: YG8, HRC89
Bearings: German brand
Sample: available
Delivery: 7-30days
OEM: support
Warranty: 6 months
Package: regularly packed in carton or plastic boxes
Long-inclined needle roller bearings, three-point support arrangement and rigid structure
The design can perform well for medium load work.
Small outer diameter, thus less interference to lathe cutter
It’s suitable for high speed and moderate cutting.
Quick oil lubricating, prolong service life
In the state of high-speed internal rotation, the lubricating oil is easy to evaporate and affect the rotation. Regular oil injection can reduce the bearing load force and effectively protect the life of the bearing.
Dust-proof seal ring at the front
The front end gland is equipped with a sealing device to prevent cutting fluid and dust from entering. The design can effectively extend the service life of the bearing center.
 |  |
 |  |
Regularly packed in carton box or as required.
FAQ
Q: What service can you do?
A: OEM/ODM. Free samples available after price confirmed, but you need to share the sample freight. We produce the parts per customers'drawing or sample. Concerning the protection of customers'intellectual property, we don't sell our customers'same product to the third party.
Q: What data should the customer provide for a precise quotation?
A: The drawings or samples, quantity, tolerance, standard, material, surface finish, other special requirements, etc.
Q: What're your delivery methods?
A: DHL, EMS, UPS, land transport or sea freight available.
Q: How do you assure the quality control?
A: Full inspection with test report and material composition certificate for each order and 1-year after-sale service for free repair or replacement for deficit products. Almost zero repair rate and defective products all replacement or repair for free.
Q: How long is your lead time?
A: 10-30days up to the quantity.
Q: what surface treatments can you deal with?
A: Titanium nitride (TiN), TiCN, titanium plating, blackening, carburize, zinc plating, zinc coating, galvanization, chrome plate, etc.
Q: what's your payment term?
A: T/T, L/C, western Union, PayPal, etc.
