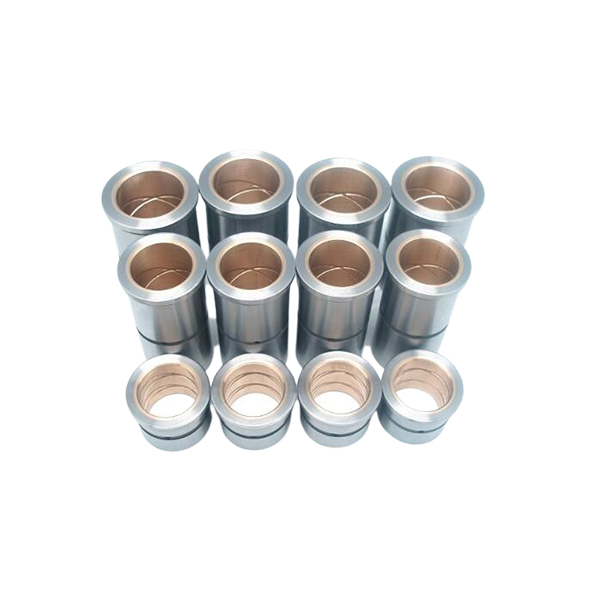

Guide Sleeve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Name: guide sleeve


Material: SKH51, SUJ2, SKD11, Tungsten Steel, HSS…etc.
Hardness: 40-64HRC
Tolerance: +/-0.0005mm to +/-0.002
  • MWMECH

  • MWMP-19200501

  • yes

  • SUJ2

  • surface polishing

Availability:
Quantity:


 Guide sleeve application


  • Guide bushings guide sleeves are important mould/die parts to assure the correct opening and closing direction or location of the fixed die plate with the moving die plate so that no other parts, sections or space are damaged, and then the mould/die can work in a right path and efficient way without repair frequently. We can produce similar parts according to your drawings.


Guide bushing guide sleeve customization


  • Various of metal materials with different surface treatments are adopted to satisfy with your requirements and keep efficient running of your production line. Since the work fixture tooling and parts are closely connected with the practical production scenes and conditions, we produce customer orientated and non-standard OEM products.

  • You need to provide clear drawings and requirements so as to for our engineers understand thoroughly.


  • Our regular service scope as following but not limited, up to your drawings:



Non-Standard Mechanical Parts for Assemble Line,

Assemble Line Punch,

Assemble Line Head Punch,

Assemble Line Connecting -Adapter Parts,

Assemble Line Mounting Plate Components,

Assemble Line Metal Gripper,

Assemble Line Guide Sleeves,

Assemble Line Orientation Inserts,

Assemble Line Flange Connector parts,

Assemble Line Device,

Orientation Parts for Assemble Line,

Measurement Parts for Assemble Line,

Non-Standard Inspection Parts,

Non- Standard Metal Cutters for Assemble Line…


Guide bushing guide sleeve features


  • Good consistency, stable quality, precision tolerances.

  • Almost zero repair rate and zero defective products, all replacement or repair for free due to our fault within 1 year warranty period.

  • Quality control assurance.

  • Fast after-sale respond.

Packaging

Inner: bubble bag, PE bag or plastic seal with anticorrosive oil plus outer carton box, or other safe package.


Guide bushing guide sleeve surface treatment


You may have many choices of surface treatments according to your needs. Below are some usual methods we use.

surface treatment-MWMECHPARTS



Our other case of guide bushing/steel guide rod/metal guide sleeve and mould parts for example

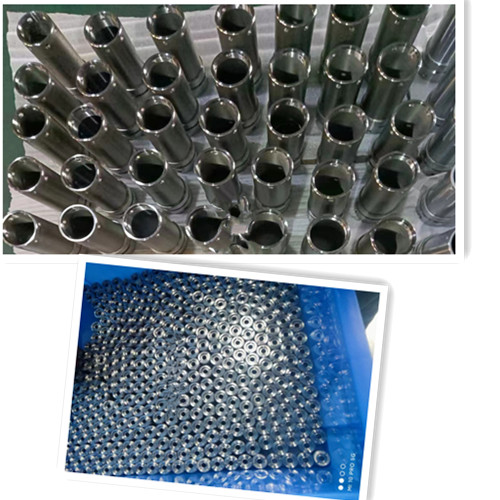

customized guide sleeve-MWMECHPARTS

customized precision die parts for assembling-MWMECHPARTS

customized precision mold inserts supplier-MWMECHPARTS

FAQ


Q: What service can you do?

A: OEM/ODM. Free samples available after price confirmed, but you need to share the sample freight. We produce the parts per customers'drawing or sample. Concerning the protection of customers'intellectual property, we don't sell our customers'same product to the third party.


Q: What data should the customer provide for a precise quotation?

A: The drawings or samples, quantity, tolerance, standard, material, surface finish, other special requirements, etc.


Q: What're your delivery methods?

A: DHL, EMS, UPS, land transport or sea freight available.


Q: How do you assure the quality control?

A: Full inspection with test report and material composition certificate for each order and 1-year after-sale service for free repair or replacement for deficit products. Almost zero repair rate and defective products all replacement or repair for free.


Q: How long is your lead time?

A: 10-30days up to the quantity.


Q: what surface treatments can you deal with?

A: Titanium nitride (TiN), TiCN, titanium plating, blackening, carburize, zinc plating, zinc coating,  galvanization, chrome plate, etc.


Q: what's your payment term?

A: T/T, L/C, western Union, PayPal, etc.
