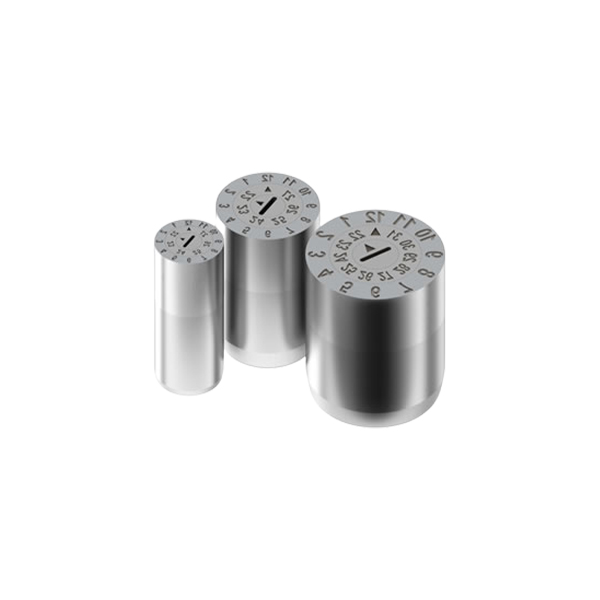

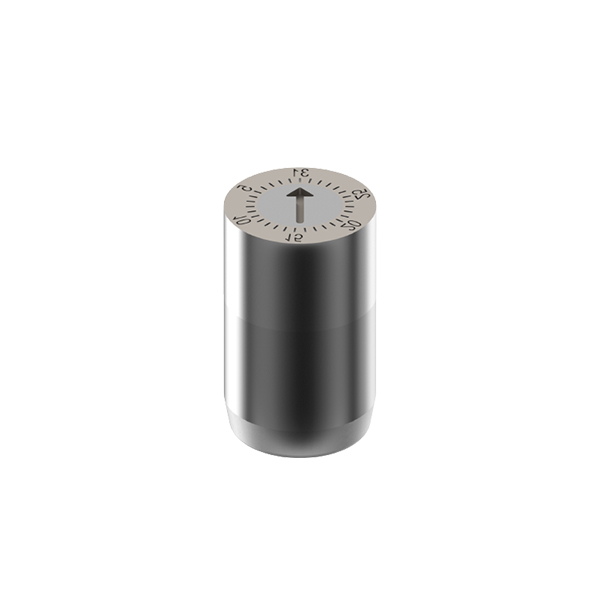

The date stamp leaves kinds of marks and patterns on the plastic products, and records the production date, brand number, trademark and service life of the plastic, so as to facilitate quality management, product maintenance and identification of service life.
Standard date stamp assemblies are made of stainless steel. These inserts are designed for the center inserts to remain flush with the body of the assembly. Diameters ranging from 4mm to 20mm to fit your mold design.
Applied to plastic mold, die casting mold and vacuum plastic- absorption mold.
Pad with soft metal pad and tap into the mold mounting hole.
The internal constructure is divided into steel ball structure, spring, screw, core change structure and so on.

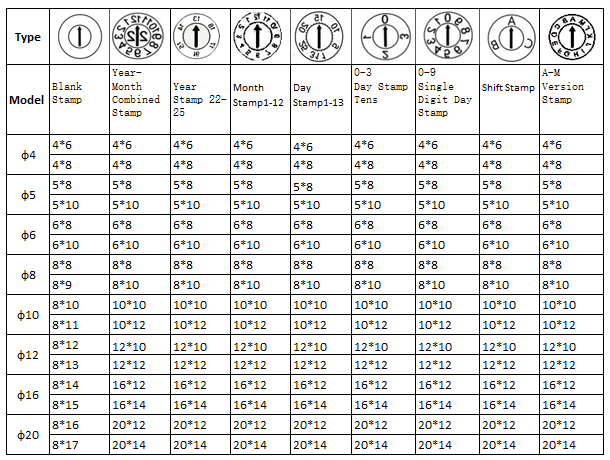

The internal constructure of the overall style is the steel ball positioning, which has 12, 10, 31 points of positions matching toф8, ф10, ф12, ф16, ф20 specifications. Other fractile position quantities need to be specially designed and customized.
According to your drawing, customization patterns acceptable.
Year – month combination, single year or month style.
Overall style, interchangeable of the date-core style, screw type.
marking insert
month insert
arrow insert
resin marking insert
shift marking insert
day marking insert
month-marking inset
year- marking insert...etc.
Inner: bubble bag, PE bag or plastic seal with anticorrosive oil plus outer carton box, or other safe package.

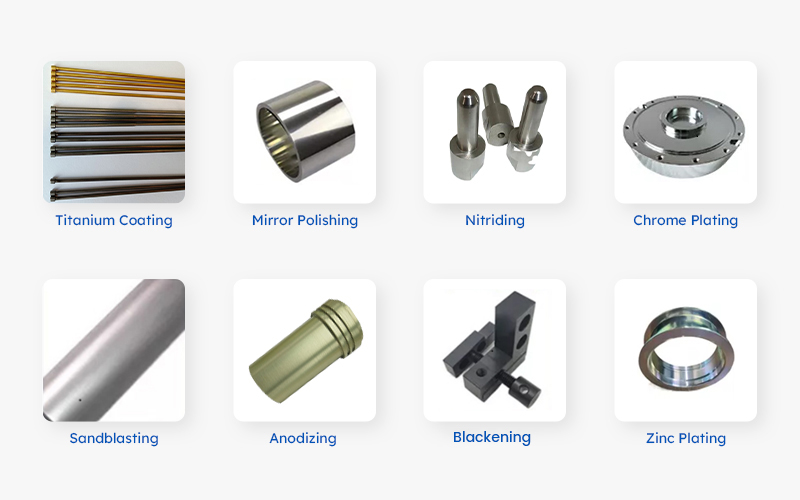

The main surface treatment methods of die accessories are: electroplating, spraying, polishing, anodizing, blackening, etc.
The function is to improve the appearance, the corrosion resistance and wear resistance of the mold parts. Each has its own unique use environment and condition as below:
Steel Material Electroplating
Electroplating-Electroplating is a method of treating the surface of die accessories with a layer of metal film. Different metals, such as chromium, zinc, or nickel, are used as coatings in different utility environments.
Usage: It is used for parts with low dimensional accuracy requirements. Because the thickness uniformity of electroplating is not easy to control, the accessary processing is required to ensure the accuracy when the dimensional accuracy is high.
Steel Material Spraying
Spraying refers to the treatment method of spraying a layer of coating on the surface of mold accessories.
Usage: It can be used as the final surface treatment for parts requiring high dimensional precision and high wear resistance.
Steel Material Polishing
Polishing refers to treat the surface into a smooth, flat, burr free state.
Usage: To improve the appearance, the micro roughness and wear resistance of the die parts.
Common Steel Blackening
Blackening refers to the method of treating the surface of mold accessories into a layer of black oxide film.
Usage: Ordinary steel as a kind of mold parts material, if it’s performance needs and corrosion resistance requirements are not high, blackening treatment can be cost saving.
Aluminum Anodizing
Anodizing- Anodizing refers to treat the surface of die parts into a layer of oxide film.
Usage: Because of its low hardness, usually used as an auxiliary mold accessories.
You may choose surface treatments according to your needs. Below are some usual methods we use.
FAQ
Q: What service can you do?
A: OEM/ODM. Free samples available after price confirmed, but you need to share the sample freight. We produce the parts per customers'drawing or sample. Concerning the protection of customers'intellectual property, we don't sell our customers'same product to the third party.
Q: What data should the customer provide for a precise quotation?
A: The drawings or samples, quantity, tolerance, standard, material, surface finish, other special requirements, etc.
Q: What're your delivery methods?
A: DHL, EMS, UPS, land transport or sea freight available.
Q: How do you assure the quality control?
A: Full inspection with test report and material composition certificate for each order and 1-year after-sale service for free repair or replacement for deficit products. Almost zero repair rate and defective products all replacement or repair for free.
Q: How long is your lead time?
A: 10-30days up to the quantity.
Q: what surface treatments can you deal with?
A: Titanium nitride (TiN), TiCN, titanium plating, blackening, carburize, zinc plating, zinc coating, galvanization, chrome plate, etc.
Q: what's your payment term?
A: T/T, L/C, western Union, PayPal, etc.
The date stamp leaves kinds of marks and patterns on the plastic products, and records the production date, brand number, trademark and service life of the plastic, so as to facilitate quality management, product maintenance and identification of service life.
Standard date stamp assemblies are made of stainless steel. These inserts are designed for the center inserts to remain flush with the body of the assembly. Diameters ranging from 4mm to 20mm to fit your mold design.
Applied to plastic mold, die casting mold and vacuum plastic- absorption mold.
Pad with soft metal pad and tap into the mold mounting hole.
The internal constructure is divided into steel ball structure, spring, screw, core change structure and so on.
The internal constructure of the overall style is the steel ball positioning, which has 12, 10, 31 points of positions matching toф8, ф10, ф12, ф16, ф20 specifications. Other fractile position quantities need to be specially designed and customized.
According to your drawing, customization patterns acceptable.
Year – month combination, single year or month style.
Overall style, interchangeable of the date-core style, screw type.
marking insert
month insert
arrow insert
resin marking insert
shift marking insert
day marking insert
month-marking inset
year- marking insert...etc.
Inner: bubble bag, PE bag or plastic seal with anticorrosive oil plus outer carton box, or other safe package.
The main surface treatment methods of die accessories are: electroplating, spraying, polishing, anodizing, blackening, etc.
The function is to improve the appearance, the corrosion resistance and wear resistance of the mold parts. Each has its own unique use environment and condition as below:
Steel Material Electroplating
Electroplating-Electroplating is a method of treating the surface of die accessories with a layer of metal film. Different metals, such as chromium, zinc, or nickel, are used as coatings in different utility environments.
Usage: It is used for parts with low dimensional accuracy requirements. Because the thickness uniformity of electroplating is not easy to control, the accessary processing is required to ensure the accuracy when the dimensional accuracy is high.
Steel Material Spraying
Spraying refers to the treatment method of spraying a layer of coating on the surface of mold accessories.
Usage: It can be used as the final surface treatment for parts requiring high dimensional precision and high wear resistance.
Steel Material Polishing
Polishing refers to treat the surface into a smooth, flat, burr free state.
Usage: To improve the appearance, the micro roughness and wear resistance of the die parts.
Common Steel Blackening
Blackening refers to the method of treating the surface of mold accessories into a layer of black oxide film.
Usage: Ordinary steel as a kind of mold parts material, if it’s performance needs and corrosion resistance requirements are not high, blackening treatment can be cost saving.
Aluminum Anodizing
Anodizing- Anodizing refers to treat the surface of die parts into a layer of oxide film.
Usage: Because of its low hardness, usually used as an auxiliary mold accessories.
You may choose surface treatments according to your needs. Below are some usual methods we use.
FAQ
Q: What service can you do?
A: OEM/ODM. Free samples available after price confirmed, but you need to share the sample freight. We produce the parts per customers'drawing or sample. Concerning the protection of customers'intellectual property, we don't sell our customers'same product to the third party.
Q: What data should the customer provide for a precise quotation?
A: The drawings or samples, quantity, tolerance, standard, material, surface finish, other special requirements, etc.
Q: What're your delivery methods?
A: DHL, EMS, UPS, land transport or sea freight available.
Q: How do you assure the quality control?
A: Full inspection with test report and material composition certificate for each order and 1-year after-sale service for free repair or replacement for deficit products. Almost zero repair rate and defective products all replacement or repair for free.
Q: How long is your lead time?
A: 10-30days up to the quantity.
Q: what surface treatments can you deal with?
A: Titanium nitride (TiN), TiCN, titanium plating, blackening, carburize, zinc plating, zinc coating, galvanization, chrome plate, etc.
Q: what's your payment term?
A: T/T, L/C, western Union, PayPal, etc.
