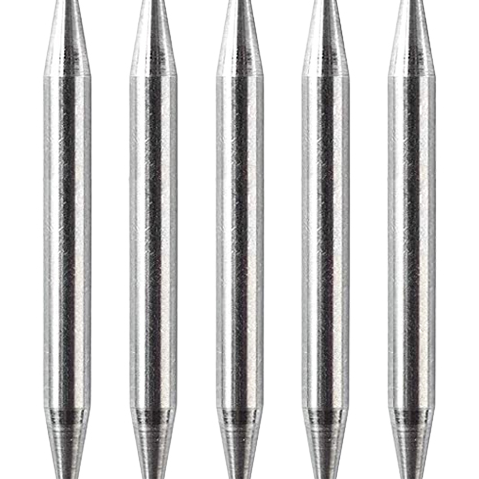

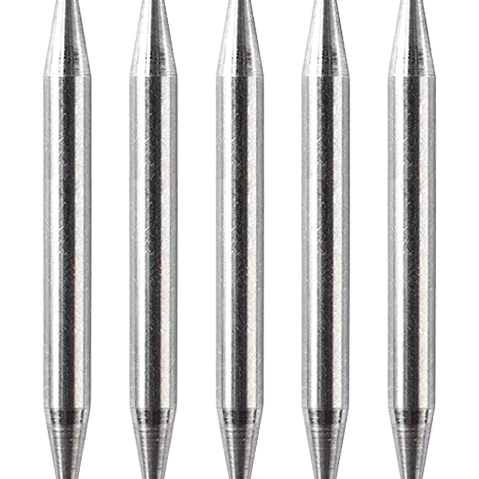

The utility of pure tungsten electrode is most widely used in the AC- alternating current condition. It is generally used for welding aluminum or magnesium alloy. So, aircraft industry needs it commonly. It’s also applied in the fields of mechanical, electronics, lighting, semiconductor, vacuum heating, solar photovoltaic industries.
Under the condition of DC welding, the electrode is prone to non-arc or unstable; whereas by adding rare earth oxide can greatly improve this situation. Therefore, pure tungsten electrode is only used as welding electrode or as resistance welding electrode under AC condition.

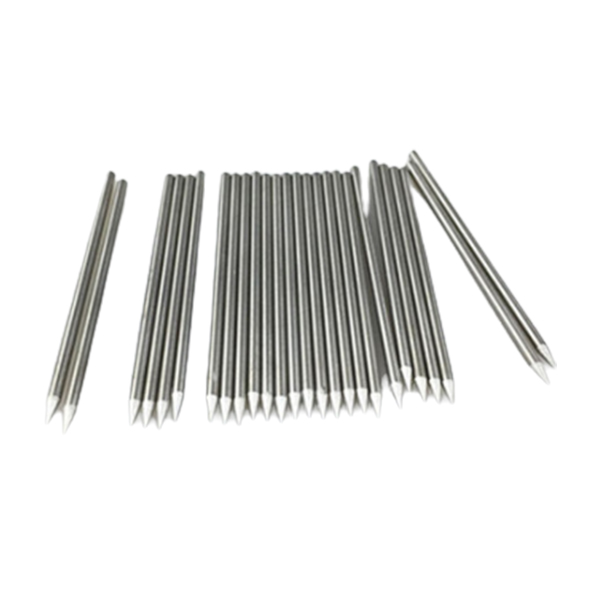

Pure or alloy tungsten is widely served as tungsten electrode material in argon arc welding technology.
As a special probe to test the electrical resistivity property of the semiconductor materials.
As probe pin for testing instruments.
Other applications such as serving as a discharge pin

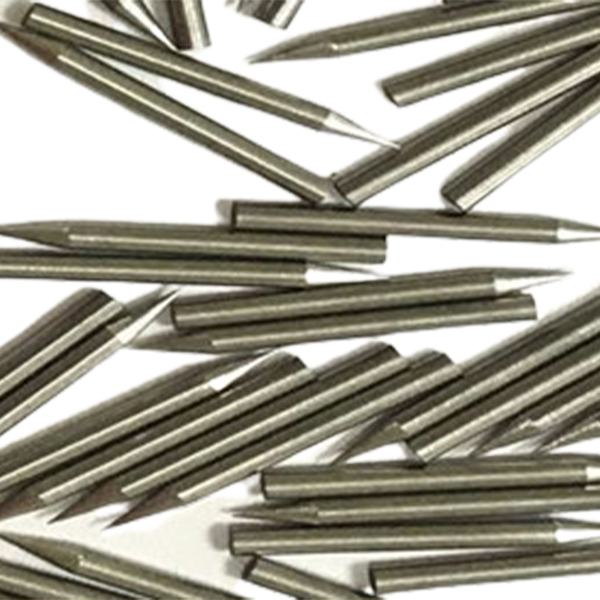

Spot welding pin
Resistance welding electrode
Used for example, precise welding for jewelry, thin sheet plate and other tiny and fine components.
Low thermal expansion
High melting point
Good thermal conductivity
High temperature resistance
Good electrical conductivity
Perfect electrical resistance
High strength and hardness
Material | W1, W2, WAL1, WAL2 |
Dia. Scope | ф0.5≦W1,W2<ф3.0; ф3.0≦WAL1<ф6.5; ф6.5≦WAL2<ф20 |
Purity | 99.92% -99.99% |
Diameter | ф0.5mm, 0.6mm, 0.8mm, 1.2mm, 1.5mm, 1.6mm, 2.0mm, 2.4mm, 3mm …… 20mm. |
Hardness | Min. HRA69 |
Length | customized |
Tip Length | 2mm-10mm, 1 or 2 end- tip optional. |
Grinding Angle | 10-90 degree |
Surface Treatment | black surface, lathe machining, grinding, polishing |
Melting Point | 3422℃ |
You need to provide clear drawings and requirements so as to for our engineers understand thoroughly.
We can also supply precision mechanical parts as below:
Assemble Line Punch,
Assemble Line Head Punch,
Assemble Line Connecting -Adapter Parts,
Assemble Line Mounting Plate Components,
Assemble Line Metal Gripper,
Assemble Line Guide Sleeves,
Assemble Line Orientation Inserts,
Assemble Line Flange Connector parts,
Assemble Line Device，
Orientation Parts for Assemble Line,
Measurement Parts for Assemble Line,
Inspection Parts,
Non- Standard Metal Dividing Cutters Assemble Line Tooling…
Package: plastic box with clear rubber head-end protection.

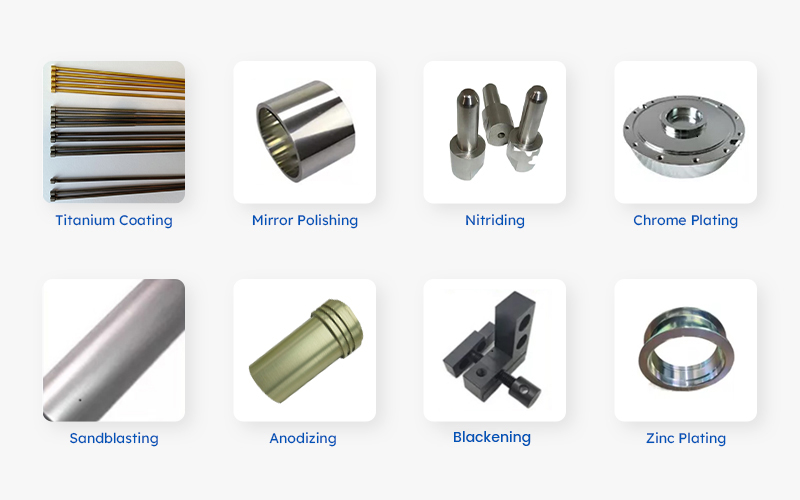

The main surface treatment methods of precision mechanical parts are: electroplating, spraying, polishing, anodizing, blackening, etc.
The function is to improve the appearance, the corrosion resistance and wear resistance of the parts. Each has its unique use environment and condition, advantages and disadvantages.
You may choose surface treatment according to your needs. Below are some usual methods we use.
FAQ
Q: What service can you do?
A: OEM/ODM. Free samples available after price confirmed, but you need to share the sample freight. We produce the parts per customers'drawing or sample. Concerning the protection of customers'intellectual property, we don't sell our customers'same product to the third party.
Q: What data should the customer provide for a precise quotation?
A: The drawings or samples, quantity, tolerance, standard, material, surface finish, other special requirements, etc.
Q: What're your delivery methods?
A: DHL, EMS, UPS, land transport or sea freight available.
Q: How do you assure the quality control?
A: Full inspection with test report and material composition certificate for each order and 1-year after-sale service for free repair or replacement for deficit products. Almost zero repair rate and defective products all replacement or repair for free.
Q: How long is your lead time?
A: 10-30days up to the quantity.
Q: what surface treatments can you deal with?
A: Titanium nitride (TiN), TiCN, titanium plating, blackening, carburize, zinc plating, zinc coating, galvanization, chrome plate, etc.
Q: what's your payment term?
A: T/T, L/C, western Union, PayPal, etc.
